Ring Lock Scaffold for Stadium and Large Span Structure Construction
Ring Lock Scaffold is a high-strength modular scaffolding system utilizing a patented rosette disc connection. It is engineered for demanding applications such as high-rise construction, bridge support, and large-scale industrial maintenance, offering unparalleled stability and rapid deployment.
Key Features
Quick Wedge Locking
All components connect via a hammer-driven wedge into the rosette disc, enabling tool-free, rapid assembly and disassembly that is significantly faster than traditional systems.
High Load Capacity & Stability
The 8-hole rosette design allows for multi-directional connections, creating a rigid, triangulated structure capable of supporting heavy loads and resisting strong lateral forces.
Exceptional Versatility
The system's modular design allows for easy configuration of standard frames, stair towers, and cantilevered platforms to adapt to complex building geometries and access requirements.
Durable & Safe Construction
Manufactured from high-grade steel with a full hot-dip galvanized finish, it ensures long-term corrosion resistance and a safe, non-slip working platform.
Technical Specifications
- Primary Material: High-Strength Structural Steel (Q345B equivalent)
- Standard Tube: Ø48.3mm x 3.2mm / Ø60mm x 3.2mm
- Common Frame Sizes: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m (Length & Width)
- Safe Working Load: Up to 60 kN per standard (varies by configuration)
- Surface Finish: Hot-Dip Galvanized (HDG) to ASTM A123
Component Specifications
 |

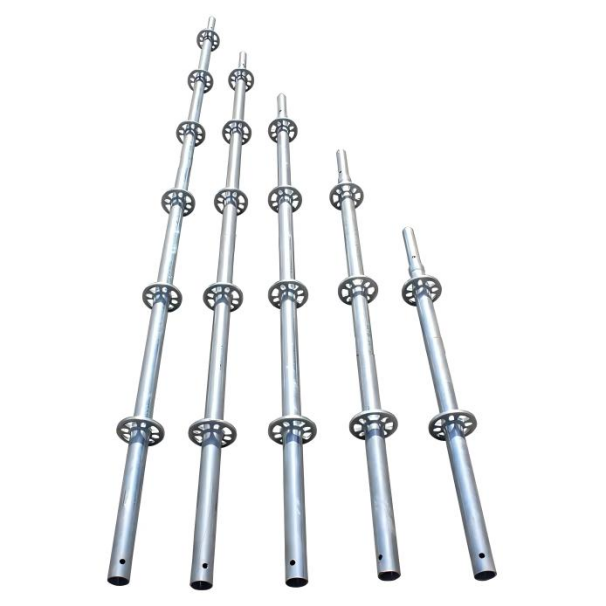

Component: Vertical Standards
Materials: Q345/Q355B
Diameter: 60mm & 48mm
Pipe Wall Thickness: 3.0mm/3.2mm/3.25mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 1.8KG-18.75KG according to different sizes
Length: 200mm-3000mm various sizes available
Description: Main stressed part of ring-lock scaffold with inner fittings for height adjustment |
 |

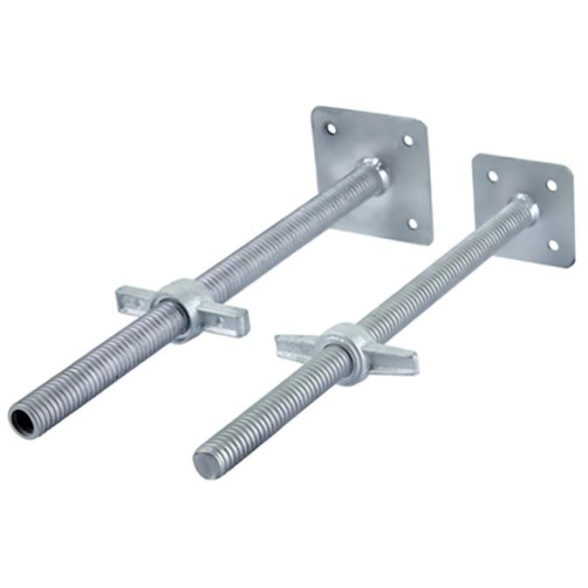

Component: Adjustable Base Jack
Materials: Q235/Q345
Pipe Type: Hollow or Solid
Screw Rod Diameter: 30mm-48mm or customized
Pipe Wall Thickness: 4mm/4.75mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 2.7KG-8KG according to different sizes
Adjustable Length: 100mm To 1000mm as required
Description: Arranged at the bottom of ring-lock scaffolding system |
 |
Component: U Head Jack
Materials: Q235/Q235B/Q345
Pipe Type: Hollow or Solid
Screw Rod Diameter: 30mm-48mm or customized
Pipe Wall Thickness: 3.5mm-4.75mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 2.91KG-8KG according to different sizes
Adjustable Length: 100mm To 1000mm as required
Description: Used to support keel and adjust scaffold height |
 |

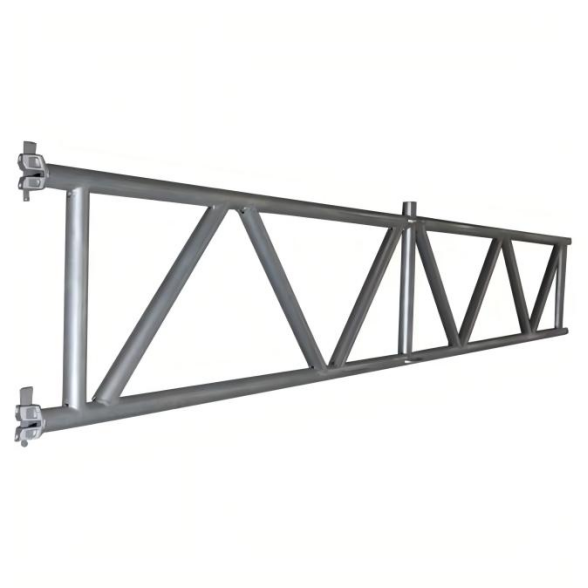

Component: Truss (Bridge) Ledger
Materials: Q235/Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.25mm
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 9.35KG-19KG according to different sizes
Length: 1.52m-3.05m or customized
Description: Enhances scaffolding stability |
 |
Component: Lattice Beam (Girder)
Materials: Q235/Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.0mm-4.0mm
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 25KG-150KG according to different sizes
Length: 2070mm-6140mm or customized
Description: Enhances scaffolding stability |
 |
Component: Side Bracket
Materials: Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.2mm/3.25mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Length: 360mm-1090mm or customized
Description: Used when main frame cannot reach required positions |
 |
Component: Steel Plank
Materials: Q235
Diameter: 48.3mm
Thickness: 1.2mm-2.0mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Size: Various standard and custom sizes available
Description: Facilitates safe worker movement during construction |
Application Scope
Widely used in bridge engineering including general elevated bridges, tunnel engineering, factory buildings, elevated water towers, power plants, refineries, and special factory building support design. Also suitable for pedestrian overpasses, span sheds, storage shelves, chimneys, water towers, indoor and outdoor decoration, large-scale concert stages, background frames, stands, viewing platforms, styling frames, staircase systems, stage construction, sports competition stands, and various other projects.
Competitive Advantages
- Labor Efficiency: Assembly is 2-3 times faster than traditional scaffolding, significantly reducing on-site labor costs and project timelines.
- Enhanced Safety: The positive wedge lock and rigid node design minimize installation errors and prevent accidental dislodgement, ensuring a safer working platform.
- Long-Term ROI: High durability and reusability across hundreds of projects make it a cost-effective solution for rental companies and large contractors.
- Experienced Engineering Team: Average 10+ years working experience.
- Production Expertise: Over 20 years of production experience ensuring stable product quality.
- Strategic Location: Factory located in industrial cluster area providing significant cost advantages.
- Full Cycle Services: Comprehensive project services ensuring smooth Ring-Lock Scaffold application.
Professional Services
- Professional engineering team provides detailed product application solutions
- Expert consultation for optimized engineering application plans
- Dedicated service teams for each project ensuring perfect product-demand matching
- Efficient construction support through timely product delivery
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group company operates two major production bases with over 20 years of specialized production experience.
What services do you provide?
We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
Do you provide samples?
Yes, we can provide samples. Customers are responsible for shipping costs.
How to get a quotation?
Provide specific requirements list, or inform us of your intended product use - we will develop a customized plan based on your needs.
Quotation and delivery timeline?
Specific quotations typically completed within 2 days. Delivery time after contract signing usually 10-30 days depending on project complexity.
Payment terms?
T/T 30% deposit before manufacture, 70% balance against B/L Copy, or L/C.
